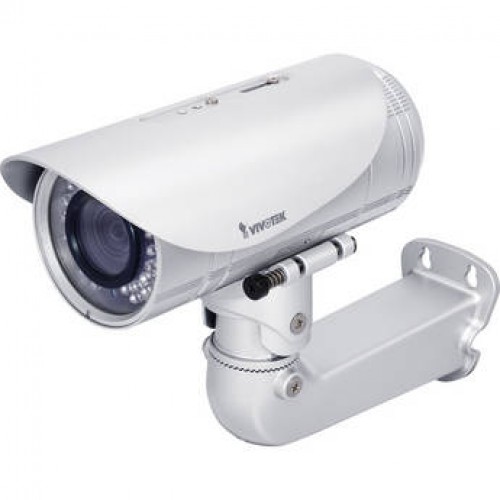

主要功能
- 500萬畫素CMOS感光元件
- 30 fps @ 1080p Full HD
- 3.79 ~ 9 mm變焦，DC光圈鏡頭
- 日夜皆可使用的可切換式紅外線濾光片
- 內建有效範圍可達30公尺的紅外線投射燈
- 即時H.264、MPEG-4和MJPEG多模引擎壓縮技術(三模壓縮格式)
- 能在極亮或極暗環境中提供無可比擬可見性的WDR補強功能
- 遠端及精準焦距調整的智慧對焦系統
- 耐室外環境的IP67等級外殼
- 內建802.3af相容的乙太網路供電系統
- 內建MicroSD/SDHC/SDXC記憶卡插槽，可使用記憶卡儲存檔案
- 用於保護安裝的纜線管理安裝架
System Information
| CPU |
- Multimedia SoC (System-on-Chip)
|
| Flash |
|
| RAM |
|
|
Camera Features
| 感光元件 |
|
| 最小 解析度 |
|
| Lens Type |
|
| 焦距 |
|
| 光圈 |
|
| 自動光圈 |
|
| 可視角度 |
- 35.45° ~ 73° (horizontal)
- 26.69° ~ 54.77° (vertical)
- 43.99° ~ 90.91° (diagonal)
|
| 快門速度 |
- 1/5 sec. to 1/32,000 sec.
|
| WDR Technology |
|
| Day & Night |
- Removable IR-cut filter for day & night function
|
| 最低照度 |
- 0.03 Lux @ F1.8, 50 IRE ( Color )
- 0.001 Lux @ F1.8, 50 IRE ( B/W )
|
| 迴轉/垂直翻轉/縮放 |
- ePTZ: 48x digital zoom (4x on IE plug-in,12x built in)
|
| 紅外線濾光片 |
- Built-in IR illuminators, effective up to 30 meters
- IR LED*24, High Power IR LED*2
|
| 本機儲存 |
- MicroSD/SDHC/SDXC card slot
|
|
影像
| 壓縮格式 |
|
| Maximum Frame Rate |
- H.264:
- 10 fps at 2560x1920
- 30 fps at 1920x1080
- MPEG-4:
- 10 fps at 1920x1536
- 25 fps at 1920x1080
- MJPEG:
- 13 fps at 2560x1920
- 30 fps at 1920x1080
|
| Maximum Streams |
|
| S/N Ratio |
|
| Dynamic Range |
|
| Video Streaming |
- Adjustable resolution, quality and bit rate
- Configurable video cropping for bandwidth saving
|
| 影像校正 |
- Adjustable image size, quality and bit rate
- Time stamp, text overlay, flip & mirror
- Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks
- Scheduled profile settings
|
|
音效
| 音效 功能 |
- Audio input/output (full duplex)
|
| 壓縮格式 |
|
| 介面 |
- External microphone input
- External line output
|
|
Network
| 使用者 |
- Live viewing for up to 10 clients
|
| 協議 |
- IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X
|
| ONVIF |
- Supported, specification available at www.onvif.org
|
| 介面 |
- 10Base-T/100 BaseTX Ethernet (RJ-45)
|
|
Intelligent Video
| 影像 Motion Detection |
- Triple-window video motion detection
|
|
Alarm and Event
| 警報觸發 |
- Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection
|
| 警報事件 |
- Event notification using digital output, HTTP, SMTP, FTP and NAS server
- File upload via HTTP, SMTP, FTP and NAS server
|
|
General
| Smart Focus System |
- Remote focal & focus control
|
| Connectors |
- RJ-45 cable connector for Network/PoE connection
- Audio input
- Audio output
- AC 24V power input
- DC 12V power inout
- Digital input*2
- Digital output*1
|
| LED指示燈 |
- System power and status indicator
|
| Power input |
- 24V AC
- 12V DC
- IEEE 802.3af PoE Class 3
|
| 耗電率 |
- Max. 9.8 W (DC 12V)
- Max. 11.6 W (AC 24V)
- Max 11.8 W (PoE)
|
| 尺寸 |
|
| 重量 |
|
| Casing |
- Weather-proof IP66-rated housing
|
| 安全認證 |
- CE, LVD, FCC Class A, VCCI, C-Tick
|
| 工作溫度 |
- Starting Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
- Working Temperature: -30°C ~ 50°C (-22°F ~ 122°F)
|
| 保固 |
|
|
System Requirements
| 操作系統 |
- Microsoft Windows 7/Vista/XP/2000
|
| 瀏覽器 |
- Mozilla Firefox 7~10 (Streaming only)
- Internet Explorer 7.x or 8.x
|
| 其他瀏覽軟體 |
- VLC: 1.1.11 or above
- Quicktime: 7 or above
|
|
|
