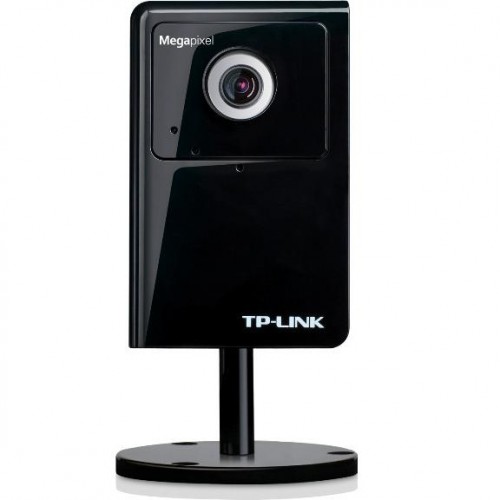

TP-LINK TL-SC3430

H.264 Megapixel Surveillance Camera
TL-SC3430

Highlights:
- 1.3 megapixel progressive scan CMOS sensor produces high definition imaging quality
- H.264, MPEG-4 and MJPEG video streaming for different quality needs and bandwidth environments
- Built-in Samba(widows)/NFS(Unix) network client for convenient video storage to NAS(Network Attached Storage)
- 2-way audio allows users to listen and talk remotely
- 3GPP compliant allows users to see live video via 3G mobile devices

Camera

Image sensor

1/4" Progressive scan CMOS sensor

Resolution

1.3 Megapixel (1280 x 1024)

Lens

F: 1.8, f: 4.2 mm

Viewing Angle

Diagonal 58°, Horizontal 46°, Vertical 35°

Digital Zoom

10x Digital

Minimum Illumination

0.5 Lux

Video/Image

Compression Mode

Motion JPEG

MPEG-4 Part 2 (ISO/IEC 14496-2) Simple Profile

H.264 Baseline Profile

Frame Rate vs. Resolution

Max. 15 fps at 1280x1024 (SXGA), 1280x720 (HD 720)

Max. 30 fps at 640x480 (VGA), 320x240 (QVGA)

Video Streaming

Simultaneous Motion JPEG, MPEG-4, H.264 and 3GPP (4 streaming)

Controllable Frame rate and bandwidth

Support Unicast and Multicast

Support 3GPP/ISMA RTSP (Real Time Streaming Protocol)

Image Setting

Rotation: Mirror, Flip, Mirror Flip

Configurable brightness, contrast, saturation

Overlay capabilities: time, date, text and privacy image

Audio

Audio Communication

2-Way full duplex

Audio Input

Built-in microphone

Audio Output

Audio line output connector for external speaker

Audio Compression

G.711 μ law, a law, and AMR

Alarm and Event Management

Events Trigger

Built-in audio & motion detection, schedule, network link down

Notification Method

E-mail, FTP, network storage

Advanced

Pre- and Post-alarm buffer

Built-in Samba/NFS Client for NAS

Network

Protocols

Bonjour, TCP/IP, DHCP, PPPoE, ARP, ICMP, FTP, SMTP, Samba, NFS,

DNS, NTP, UPnP, RTSP, RTP, RTCP, HTTP, HTTPS, TCP, UDP,

3GPP/ISMA RTSP

Security

Multiple password-protected user levels

HTTPS encryption

IP filter
