SCC-C7478P
1/4" 36x Zoom Anti-Vandal WDR All In One PTZ Camera

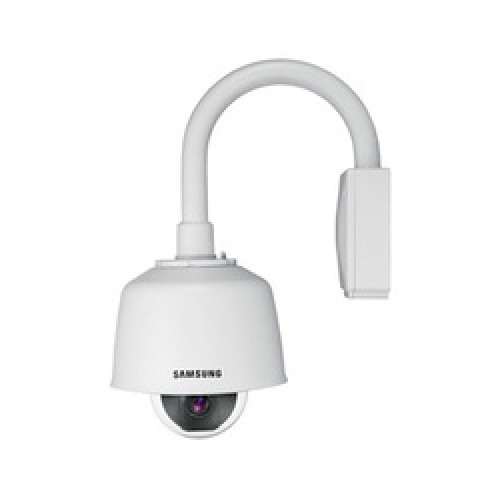

Samsung SCC-C7478P is a 1/4" 540TVL 36X All In One PTZ dome camera. It suits for outdoor applications as its IP66 certificate's outstanding waterproof and dustproof functions that allow it to be used in all climates. And its Vandal Proof cover can strongly endure external impacts. It provides a powerful monitoring of up to 432X zoom (36x Optical, 12x Digital) capability, with impeccable surveillance for various installation locations including department stores and office buildings. This camera supports 360° endless Pan and 180° Tilt functions at a very high speed (max 360°/sec). It also offers the best powerful functions for improved subject recognition in backlight and clear picture quality without noise in low lighting environment.
Features:
» 1/4" Charged Coupled Device (CCD)
» 540 TV Lines Resolution
» 36x Optical Zoom
» Day/Night Capability
» Wide Dynmaic Range (WDR)
» Vandal Proof Housing
» IP66 Dust/Water Proof Rating
» Back Light Compensation (BLC)
» Privacy Zone Masking
» RS-485 Remote Control
» Auto White Balance (AWB)
» Auto Gain Control (AGC)
» AC24V
| Model | SCC-C7478P | |||||
| Image | Device | ExView- HAD Progressive Scan CCD | ||||
| Size | 1/4 inch | |||||
| Pixels | Total | 795 x 596 | ||||
| Effective | 752 x 582 | |||||
| Scanning | System | Interlace | ||||
| Synchronization | Internal | |||||
| Horizontal Frequency | Internal Mode | 15,625Hz | ||||
| Vertical Frequency | Internal Mode | 50Hz | ||||
| Min. Scene Illumination | 0.0066 Lux (Color)/ 0.0007 Lux(B/W) | |||||
| Functions | Back Light Compensation | On/ Off | ||||
| Day/ Night | Auto/ Off | |||||
| Wide Dynamic Range | On/ Off | |||||
| Electronic Shutter | Auto/ Manual (Max. 1/ 10,000 sec) | |||||
| Anti Vandal | Yes | |||||
| Auto Gain Control | Auto/ Manual | |||||
| OSD | Yes | |||||
| Privacy Zone | On/ Off (8 Programmable Zones) | |||||
| Sens-up | On/ Off (~ x64) | |||||
| Camera ID | dip switch adjustable | |||||
| White Balance | Auto/ Manual (Red, Blue, Gain Adj.) | |||||
| Resolution | Horizontal | 540 TV Lines (Color)/ 570 TV Lines (B/W) | ||||
| Lens | Focal Length | 3.4 ~ 122.4mm | ||||
| Zoom Ratio | 36x Optical | |||||
| Aperature Ratio | F1.6(W)/F4.5T | |||||
| Pan/ Tilt | Pan | Rotation Angle | 360° Endless | |||
| Speed | Max. 360°/sec | |||||
| Tilt | Rotation Angle | 360° Endless | ||||
| Speed | Max. 360°/sec | |||||
| Viewing Angle | Tele | 1.70°(H) X 1.27°(V) | ||||
| Wide | 57.80°(H) X 43.35°(V) | |||||
| S/N Ratio | 50dB | |||||
| Preset | 127 Preset | |||||
| Video Output | 1.0Vp-p/ 75Ω (Video 0.7Vp-p, Sync 0.3Vp-p) | |||||
| Alarm | Input | 8 Input | ||||
| Output | 4 Relay Output | |||||
| Multiple Protocols | Pelco-D, Pelcp-P, Samsung selectable | |||||
| Remote Control | RS-485 | |||||
| Environmental Conditions | Operating Temperature | 45°C ~ + 50°C | ||||
| Humidity | Less than 90% | |||||
| Power | Power Requirement | AC24V | ||||
| Power Consumption | Max. 57W | |||||
| Physical Specification | Dimensions | Net | 404.5 (W) X 404.5 (D) X 551.7(H)mm | |||
| Weight | Net | 11kg | ||||
