KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)
KNS承諾所有網路攝影機均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)
請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。

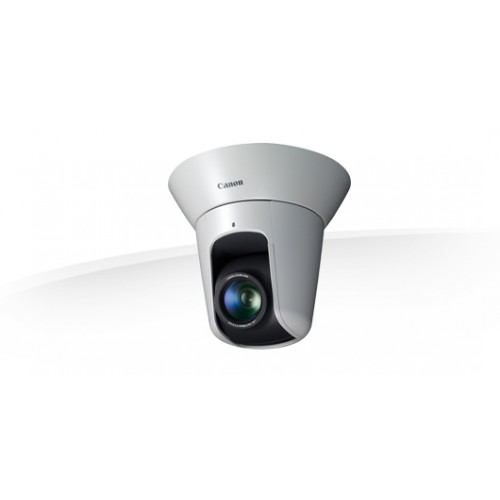

| Network Video Solution Camera | |
| Image Sensor | 1/3 type CMOS (primary color filter) |
| Total Number of Pixels | Approx. 2.1 Million Pixels |
| Scanning Method | Progressive |
| Minimum Illumination | Day Mode (Color): 0.4 lux (F1.6, shutter speed 1/30 sec., when smart shade control is off, 50IRE) 0.03 lux (F1.6, shutter speed 1/2 sec., when smart shade control is off, 50IRE) 0.01 lux (F1.6, shutter speed 1/2 sec., when smart shade control is on, 50IRE) Night Mode (Monochrome): 0.02 lux (F1.6, shutter speed 1/30 sec., when smart shade control is off, 50IRE) 0.002 lux (F1.6, shutter speed 1/2 sec., when smart shade control is off, 50IRE) 0.001 lux (F1.6, shutter speed 1/2 sec., when smart shade control is on, 50IRE) |
| Focusing | Auto/One-shot AF/Manual/Fixed at infinity |
| Aperture | F1.6 (W) - F3.5 (T) |
| Lens | 20x optical (12x digital) zoom lens with auto focus Focal Length: 4.7 (W) - 94mm (T) |
| Viewing Angle | Horizontal: 60.4° (W) - 3.2° (T) Vertical: 35.1° (W) - 1.8° (T) |
| Pan Angle Range | 340° (±170°) |
| Tilt Angle Range | 100° (ceiling-mounted position: -90° - +10°) - When the horizontal direction of the camera is 0° |
| Moving Speed | Pan: Max. 150°/sec., Tilt: Max. 150°/sec. |
| Infrared Cut Filter | Yes |
| Night Mode | Yes |
| White Balance | Auto / Light Source (Daylight Fluorescent / White Fluorescent / Warm Fluorescent / Mercury Lamp / Sodium Lamp / Halogen Lamp) / Lock (Oneshot WB) / Manual |
| Operating System | CPU: Intel Core i7-2600 Memory: 2 GB or more Viewer Display: 1920 x 1080 or more OS: Windows XP Home/Professional SP3 32-bit Windows Server 2003 Standard SP2 32-bit Windows Server 2003 R2 Standard SP2 32-bit Windows Vista Ultimate/Business/Enterprise/Home Premium SP2 32/64-bit Windows 7 Ultimate/Professional/Enterprise/Home Premium SP1 32/64-bit Windows Server 2008 Standard SP2 32/64-bit Windows Server 2008 R2 Standard SP1 64-bit Web Browser: Internet Explorer 7.0/8.0/9.0 32-bit Runtime Libraries: .NET Framework 3.5 SP1 PC specifications and OS do not apply to RM-Lite |
| Protocols | IPv4: TCP/IP, UDP, HTTP, FTP, SNMP (MIB2), SMTP (Client), DHCP (Client), DNS (Client), ARP, ICMP, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon proprietary), ONVIF Br>IPv6: TCP/IP, UDP, HTTP, FTP, SMTP (Client), DHCPv6 (Client), DNS (Client), ICMPv6, POP3, NTP, SMTP authentication, RTSP, WV-HTTP (Canon Proprietary), ONVIF |
| Video Compression Method | JPEG, H.264 Frame Rate: JPEG: 0.1 - 30 fps H.264: 1/2/3/5/6/10/15/30 fps Max. Frame Rate: 1920 x 1080: 30 fps |
| Sound Compression Method | G.711 µ-law (64 kbps) Audio Communication Method: Full-duplex (two-way) - Echo cancellation function compliant |
| Output Image Size | JPEG: 1920 x 1080, 960 x 540, 480 x 270, 320 x 240 H.264: 1920 x 1080, 960 x 540, 480 x 270 |
| Camera Control | Administrator, Authorized user, Guest user Max. 50 user names and passwords registered for authorized users. |
| Connection Control | User authority (user name and password), Host Access Restrictions (IPv4, IPv6) |
| Connection Restrictions | Max. 30 Clients + 1 Admin Client - H.264: Max. 10 Clients |
| Dimensions | 5.2" W x 6.1" H (123mm x 155mm) Camera only (height when camera is placed horizontally, excluding Ceiling Bracket) |
| Weight | Approx. 1140 g (2.514 lb.) |
| Operating Environment | Temperature: -10°C - +50° C (+14° F - +122° F) Humidity: 5% - 85% (without condensation) |
| Power | PoE: PoE power supply via LAN connector (IEEE802.3af compliant) AC Adapter: PA-V17 (100 - 240 V AC) (sold separately) External power source: 24 V AC/12 V DC |
| Power Consumption | When using PoE: Max. approx. 9.2 W When using AC Adapter PA-V17: Max. approx. 10.7 W When using DC: Max. approx. 8.6 W When using AC: Max. approx. 8.8 W |
| AC Adapter | |
| Model | PA-V17 AC Adapter (sold separately) |
