EC Line EC-TS-1510A

EC Line EC-TS-1510A
EC Line EC-TS-1510A
型　號： EC-TS-1510A
HK$99,999.00
購買數量： 加入購物車
收藏 對比


支援及服務

KNS特別價惠：
** 運費：$80 (只限部份地區,請致電查詢)
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有Monitor均屬全新香港行貨，
並享有原廠保用服務 (條款以代理商提供為準) 。
請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。





  • LIYITEC/ Wan da five-wire resistive technology
  • Drip-proof enclosure, touchscreen sealed
  • Touch can be activated with gloved hands
  • Multiple mounting options including VESA
  • Built in speakers (optional)
  • On screen display controls on the side

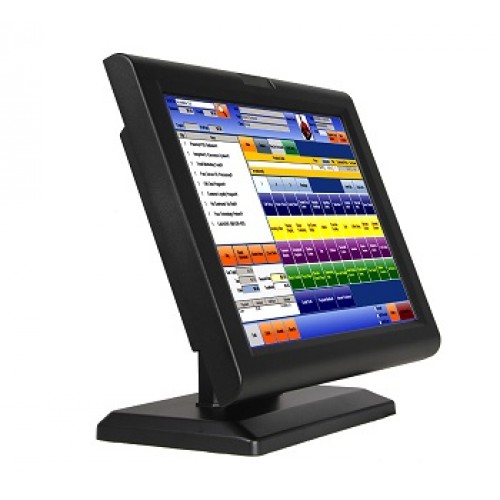

Display type 15”LCD Touch monitor
Color Black
Optional items ISO Track 1/2/3 Magnetic Stripe Reader & VFD

Pixel 0.297(H)×0.297(V) mm
Display area 304.128(H)×228.096(V) mm
Contrast 300:1
View Angle Horizon：140；Vertical：130
Tilting Angle 0-90 degrees
LCD Panel size 15 inch TFT LCD
Line frequency 30KHZ–61KHZ
Field frequency 50HZ–75HZ
Display color 16.2M
Resolution XGA 1024*768 @ 75Hz
Brightness 250cd /㎡
Response 10ms
Touch screen 5 wire Resistive touchscreen
Touch interface USB B type
Rear I/O ports Analog: 15-pin-D-SUB,USB B type touch input from PC, USB A type input From PC,DC 12V input ,DC 12V output Audio : line in (optional)
Side I/O port USB A type port
Power Consumption 25W(max)
EMI/ Product Safety TUV,CE,VCCI,FCC
Operating Humidity 20﹪~80﹪
Operating Temperature 0 ℃ to 40℃
Storage Humidity 20﹪~80﹪
Storage Temperature -20℃ to 60℃
Packing dimension 440*390*180MM
Package: carton box with Foam pa NW:4.5KG GW: 6.5KG
Power adaptor 100-250V/50-60HZ AC power input ,DC 12V/3A output
other function cable VGA cable, USB B type cable for touch ,Audio cable (audio function optional)
