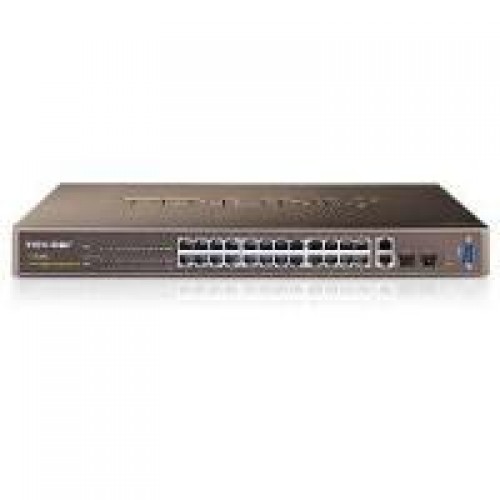

TP-LINK TL-SL3428

TP-LINK TL-SL3428
TP-LINK TL-SL3428
型　號： TL-SL3428
HK$99,999.00
購買數量： 加入購物車
收藏 對比


支援及服務

Bookmark and Share

KNS Shop 購物價惠：
** 部份地區免費送貨
** 電話技術支援安裝
** 保證原庄跟機配件
** 提供七天售後保障 (只限非人為損壞)

KNS承諾所有Switch均屬全新香港行貨 ㊣
並享有原廠保用服務 (條款以代理商提供為準)

*24個月保養期

請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。



24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch
TL-SL3428

Highlights:

-24 10/100Mbps Ports, 2 Gigabit Ports Managed Switch

-Advanced standards-based enterprise features: IEEE 802.1d, 802.1x, 802.1Q, 802.1p, IGMP Snooping, SNMP and more

-SNMP, Web-based, Telnet,Console management



Hardware Features
STANDARDS AND PROTOCOLS
IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x, SNMP
INTERFACE
8 10/100/1000Mbps Auto-Negotiation RJ45 ports
(Auto MDI/MDIX), 1 Gigabit SFP port
1 Console Ports (RS232 DB9 Male)
NETWORK MEDIA
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
 EIA/TIA-568 100O STP (maximum 100m)
 100BASE-TX/1000Base-T: UTP category 5, 5e cable (maximum 100m)
 EIA/TIA-568 100O STP (maximum 100m)
 1000BASE-X: MMF, SMF
MAC ADDRESS TABLE
8K
SWITCHING CAPACITY
18Gbps
BUTTON
Reset Button
POWER SUPPLY
Input: 220~240VAC, 50/60Hz Output: 3.3VDC/3.0A
DIMENTIONS( W x D x H )
11.6*7.1*1.7 in.(294*180*44 mm)
Software Features
BASIC FUNCTION
MAC Address Auto-Learning and Auto-aging,
 Storm Control (Broadcast, Multicast, Unknown unicast),
 Port Mirroring, IGMP Snooping
TRANSMISSION METHOD
Store-and-Forward
LINK AGGREGATION
IEEE 802.3ad LACP Link Aggregation
SPANNING TREE
IEEE 802.1d Spanning Tree,
 IEEE 802.1s Multiple Spanning Tree,
 IEEE 802.1w Rapid Spanning Tree, BPDU Filtering,
PRIORITY
Port based Priority,
 IEEE 802.1p based Priority: 4 Queues,
 IP DSCP based Priority
VPN PASS-THROUGH
PPTP, L2TP, IPSec (ESP Head)
VLAN
802.1Q Tag-VLAN, GARP/GVRP
ACCESS CONTROL
Based on Port, Based on MAC, Based on IP,
Based on VLAN, Based on LAG,
FIREWALL SECURITY
Port Security, Static MAC Address Binding,
 802.1x port based Access Control,
 RADIUS, TACACS+
NETWORK MANAGEMENT
Telnet, CLI/Console, SSH v1/v2,
 Web (Http/Https), SSL, SNMP v1/v2c/v3
 SNMP MIB-II, Ethernet-like MIB and Bridge MIB
 RMON statistics, history, alarm and event group
SYSTEM FUNCTIONS
Fixed IP Address Setting, VCT (visual cable test )
 System Log, Port Flow Statistics, TFTP Upgrade
Others
CERTIFICATION
CE, FCC, RoHS
PACKAGE CONTENTS
Router, Power Cord, CD-ROM, RJ-15 Ethernet Cable, Rackmount Kit, User's Guide, Warranty Card
SYSTEM REQUIREMENTS
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.
ENVIRONMENT
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
