Synology RackStation RS3617RPxs

Synology RackStation RS3617RPxs
Synology RackStation RS3617RPxs
型　號： RS3617RPxs
HK$99,999.00
購買數量： 加入購物車
收藏 對比


支援及服務

KNS Shop 購物價惠：

☑ 電話或網上訂購【貨到付款】
☑ 全港免費送貨 (包括住宅區)
☑ 保證原廠行貨 ✮ 原廠保養
☑ 保證原庄跟機耗材及配件
☑ 政府或教育機構更可享有３０天數期



 請即致電 3170 7019 或電郵至 info@knshk.com 查詢及訂購。
What'sapp / Line : 9520 5503

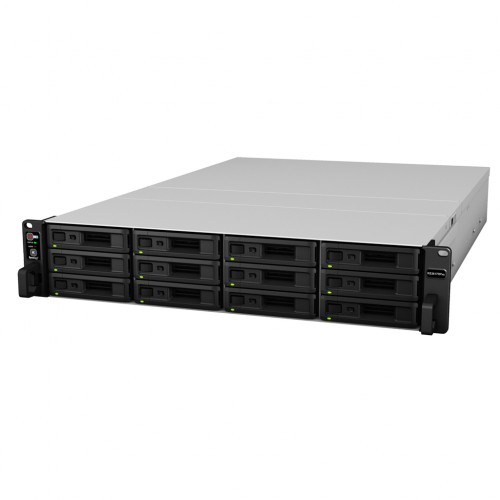

RackStation RS3617RPxs

Reliable storage solution providing uninterrupted services for large-scale businesses

Designed for businesses seeking large data storage capacity, RS3617RPxs is a high-performance, 12-bay rackmount NAS equipped with redundant power supplies, ensuring business continuity. Organizations can integrate seamlessly with virtualization solutions including VMware, Citrix, Hyper-V, and OpenStack Cinder.

RS3617RPxs



Hardware Specifications
CPU
CPU Model Intel Xeon D-1521
CPU Architecture 64-bit
CPU Frequency Quad Core 2.4 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine (AES-NI)
Memory
System Memory 8 GB DDR4 ECC UDIMM
Memory Module Pre-installed 8 GB x 1
Total Memory Slots 4
Memory Expandable up to 64 GB (16 GB X 4)
Storage
Drive Bay(s) 12
Maximum Drive Bays with Expansion Unit 36
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
Maximum Internal Raw Capacity 120 TB (10 TB HDD x 12) (Capacity may vary by RAID types)
Maximum Raw Capacity with Expansion Units 360 TB (10 TB HDD x 36) (Capacity may vary by RAID types)
Maximum Single Volume Size
  • 200 TB (32GB RAM required, for RAID 5 or RAID 6 groups only)
  • 108 TB
Hot Swappable Drive
Notes "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
USB 3.0 Port 2
Expansion Port 2
File System
Internal Drives
  • Btrfs
  • EXT4
External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT*
Appearance
Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm
Weight 14.5 kg
Others
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
Wake on LAN/WAN
PCIe Slot for Network Card (See more) 2 x Gen3 x8 slots (x8 link)
System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan
Wireless Support (dongle)
Power Recovery
Noise Level* 50.2 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter 2 X 500W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 116.42 W (Access)
65.49 W (HDD Hibernation)
British Thermal Unit 397.24 BTU/hr (Access)
223.46 BTU/hr (HDD Hibernation)
Redundant Power Supply (for xs+ and RP model)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class A
  •
