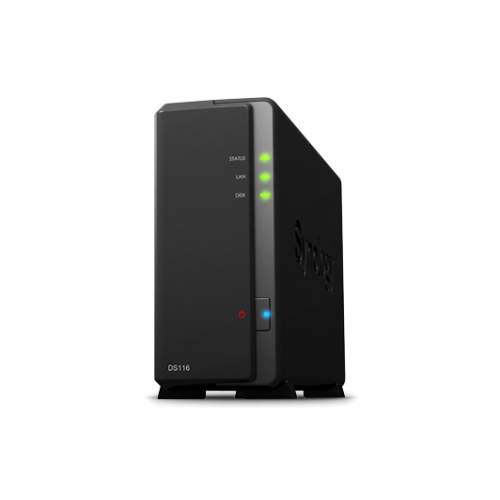

DiskStation DS116

Discover the power of anywhere access, streamline your workflow

This compact 1-bay NAS server comes with comprehensive features, allowing you to share and synchronize files across any device wherever you are, boost work productivity, and enhance team collaboration – everything you need for small offices and workgroup environments.



Hardware Specifications
CPU
CPU Model Marvell Armada 385 88F6820
CPU Architecture 32-bit
CPU Frequency Dual Core 1.8 GHz
Hardware Encryption Engine
Memory
System Memory 1 GB DDR3
Storage
Drive Bay(s) 1
Compatible Drive Type* (See all supported drives)
  • 3.5" SATA III / SATA II HDD
  • 2.5" SATA III / SATA II HDD (with optional 2.5" Disk Holder)
  • 2.5" SATA III / SATA II SSD (with optional 2.5" Disk Holder)
Maximum Internal Raw Capacity 10 TB (10 TB HDD x 1) (Capacity may vary by RAID types)
Maximum Single Volume Size 16 TB
Notes "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
External Ports
USB 3.0 Port 2
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+ (Read Only, with max. volume size 2TB)
  • exFAT*
Appearance
Size (Height x Width x Depth) 166 mm x 71 mm x 224 mm
Weight 0.7 kg
Others
RJ-45 1GbE LAN Port 1
Wake on LAN/WAN
System Fan 60 mm x 60 mm x 1 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
  • Low-power Mode
Wireless Support (dongle)
Brightness adjustable front LED indicators
Power Recovery
Noise Level* 16.4 dB(A)
Scheduled Power On/Off
Power Supply Unit / Adapter 36W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption* 10.68 W (Access)
6.28 W (HDD Hibernation)
British Thermal Unit 36.44 BTU/hr (Access)
21.43 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 40°C (40°F to 104°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 2 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Support for Wake on WAN needs switch and routers which recognize Magic Packet.
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Internal Volume Number 1
Maximum iSCSI Target Number 10
Maximum iSCSI LUN 10
Supported RAID Type Basic
File Sharing Capacity
Maximum User Accounts 2048
